自動售酒機的樣式結構是怎么樣的呢？實際上無論是什么樣式，無論是大是小，還是什么材質的自動售酒機器，其結構須具備三個部件：
What is the style and structure of the wine vending machine? In fact, no matter what style, size or material, the structure of the automatic wine selling machine must have three parts:
機體：機體按材質可以分為陶瓷，不銹鋼，或者塑料等三種，陶瓷的造型可以復雜，圖案可以印各種各樣的，因?yàn)槭菬乒に?，什么樣的形狀都可以；不銹鋼的基本都是方形，或者圓形的，因?yàn)槎际氢k金工藝，做不出來復雜形狀；塑料的也是比較單一的形狀，塑料的基本都是從先開模具，然后用模具打出來的，形狀也是單一的。
Body: The body can be divided into ceramics, stainless steel, or plastic according to the material. The shape of ceramics can be complex, and the patterns can be printed in a variety of ways. Because it is a firing process, any shape can be used; Stainless steel is basically square or round, because it is all sheet metal technology, and can not make complex shapes; The shape of plastic is also relatively simple. Plastic is basically made by opening a mold first and then using a mold. The shape is also simple.

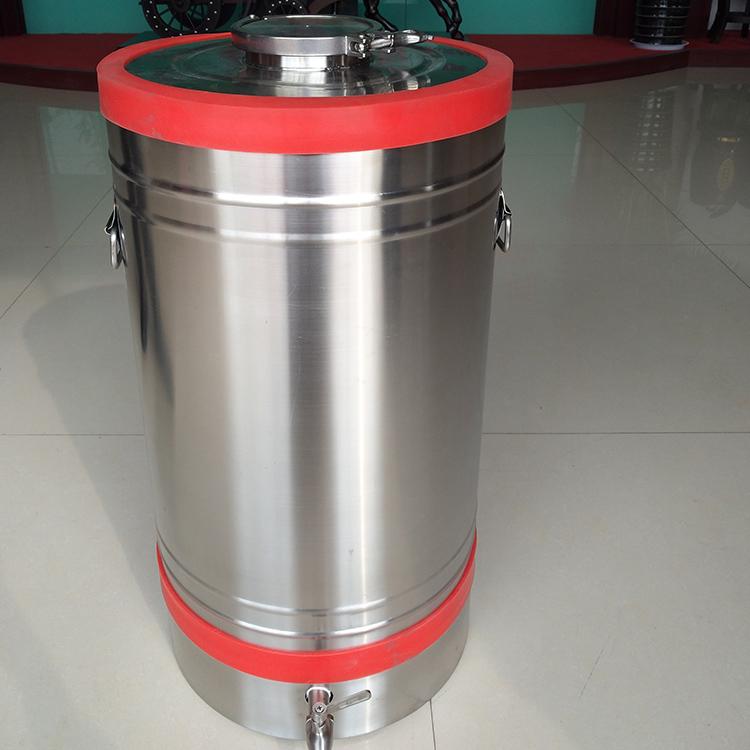

酒桶：酒桶的材質主要看大小，小酒桶的大都是玻璃的或者陶瓷的，大酒桶基本用不銹鋼的，用304或者316不銹鋼，316的不銹鋼非常好，也有的大酒桶是用塑料的，也是食品基本的桶。
Wine barrel: The material of wine barrel mainly depends on the size. Small wine barrels are mostly glass or ceramic. Large wine barrels are basically made of stainless steel, 304 or 316 stainless steel. 316 stainless steel is very good. Some large wine barrels are made of plastic, which is also a basic food barrel.
主板，配件等：自動售酒機主要部件是一塊物聯網主板，其他配件主要包括：4G流量卡，抽酒泵，流量計，電子閥，電子鎖，進氣閥，指示燈，電池，按鍵。
Motherboard, accessories, etc.: The main part of the automatic wine vending machine is a motherboard of the Internet of Things, and other accessories mainly include: 4G flow card, wine pump, flowmeter, electronic valve, electronic lock, air inlet valve, indicator, battery, and keys.
4G流量卡：通信信號，一般都是用移動卡，2，3，4G全支持，5G通信模塊很貴，現在市場上沒有5G的；
4G flow card: generally, mobile cards are used for communication signals. 2, 3 and 4G are fully supported. The 5G communication module is very expensive, and there is no 5G in the market now;
抽酒泵：食品級別，出酒時把酒抽出來；
Wine pumping pump: food level, to pump out wine;
流量計：食品級別，出酒時計量出酒量，按毫升計；
Flowmeter: food grade, measure the amount of alcohol produced in ml;
電子閥：食品級別，防止酒倒流，或者滴酒；
Electronic valve: food level, to prevent liquor backflow, or drop liquor;
電子鎖：防止偷酒，發送命令才能打開；
Electronic lock: to prevent stealing alcohol, it can only be opened by sending an order;
進氣閥：平衡酒瓶內外氣壓，有防止倒流功能，用壓力型；
Air inlet valve: it can balance the air pressure inside and outside the wine bottle, and has the function of preventing backflow. It is pressure type;
指示燈：出酒，充電等狀態指示，可以不用；
Indicator light: it can be used to indicate the status of liquor discharging and charging;
電池：能夠待機，有的是一直插電的充電款，可以不用；
Battery: It can stand by, and some are rechargeable funds that are plugged in all the time, but can not be used;
按鍵：出酒按鍵，或者開關按鍵，有的機器多個功能用一個鍵；
Buttons: wine output button, or switch button. Some machines use one button for multiple functions;
以上是硬件部分，然后還要搭配一套軟件才能工作。軟件一般都是搭配對應的酒機才能工作，不通用，只有酒機沒有軟件無法使用。
The above is the hardware part, and then a set of software is required to work. The software usually works with the corresponding wine machine, which is not universal. Only the wine machine can not be used without software.
簡單分析自動售酒機的樣式結構這個問題就為您講解完畢了，當然您在采購該設備的時候也要提前去了解好相關的質量、等方面，您可以來我們這里http://xgbmw.cn咨詢！
Simply analyze the style and structure of the automatic wine vending machine. Of course, when you purchase the equipment, you should know the relevant quality, price, etc. in advance. You can come here http://xgbmw.cn consulting service
